HydroWorx RISE
HydroWorx RISE
The Modular Solution for Modern Therapy.
The HydroWorx® RISE™ delivers powerful aquatic therapy and performance training in a compact, modular system that installs easily in nearly any space.

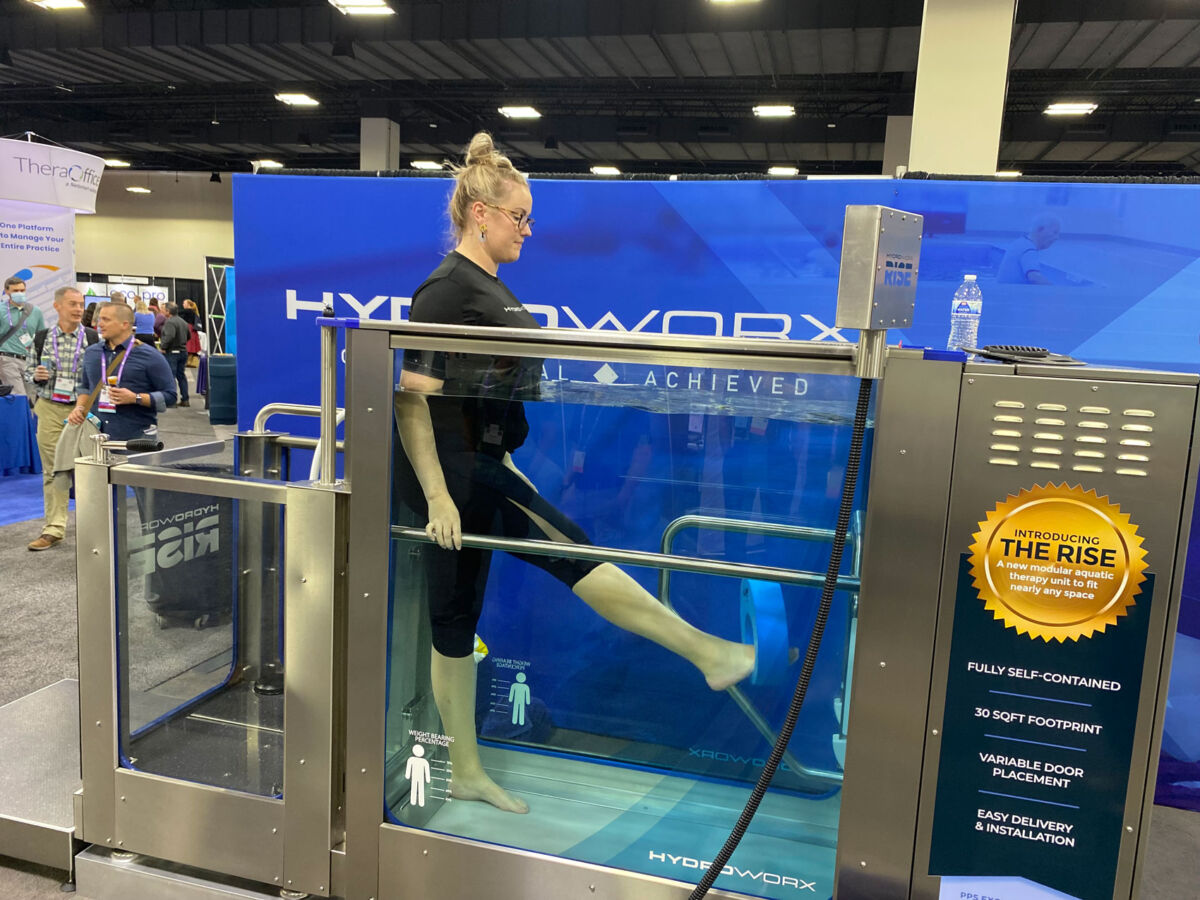

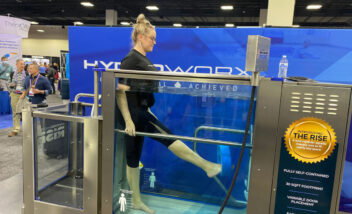

The HydroWorx RISE is a modular, self-contained aquatic therapy system built for rehabilitation, recovery, and performance training. With an underwater treadmill, adjustable water depth, and integrated resistance jet, the RISE delivers powerful, low-impact therapy in a space-saving footprint.
Its modular design and selectable door placement allow for quick installation in existing facilities without the need for external plumbing. Ideal for clinics, training centers, and wellness programs, the RISE combines flexibility, function, and HydroWorx reliability to make aquatic therapy accessible anywhere.
- Self-Contained System, No Plumbing Required
- Variable Speed Underwater Treadmill (0.2–6 mph)
- Adjustable Water Depth up to 50″

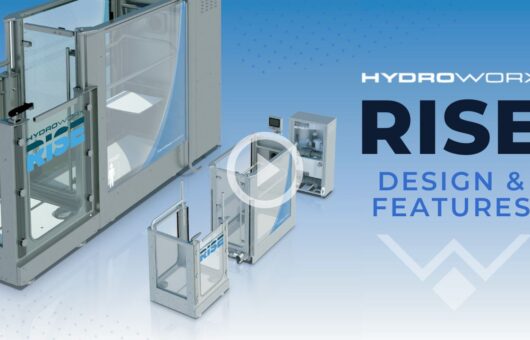

- Modular Design with Flexible Door Placement

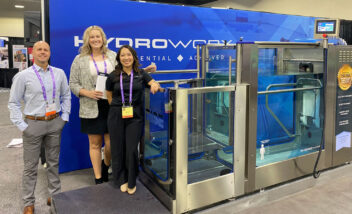

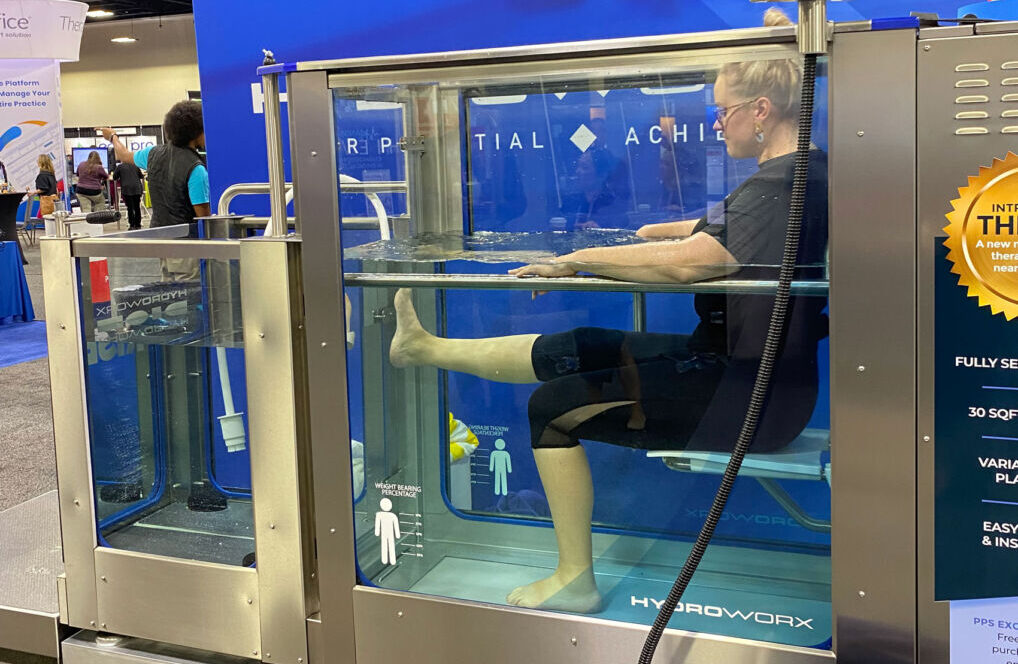

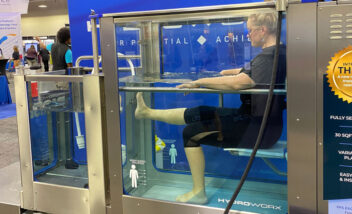

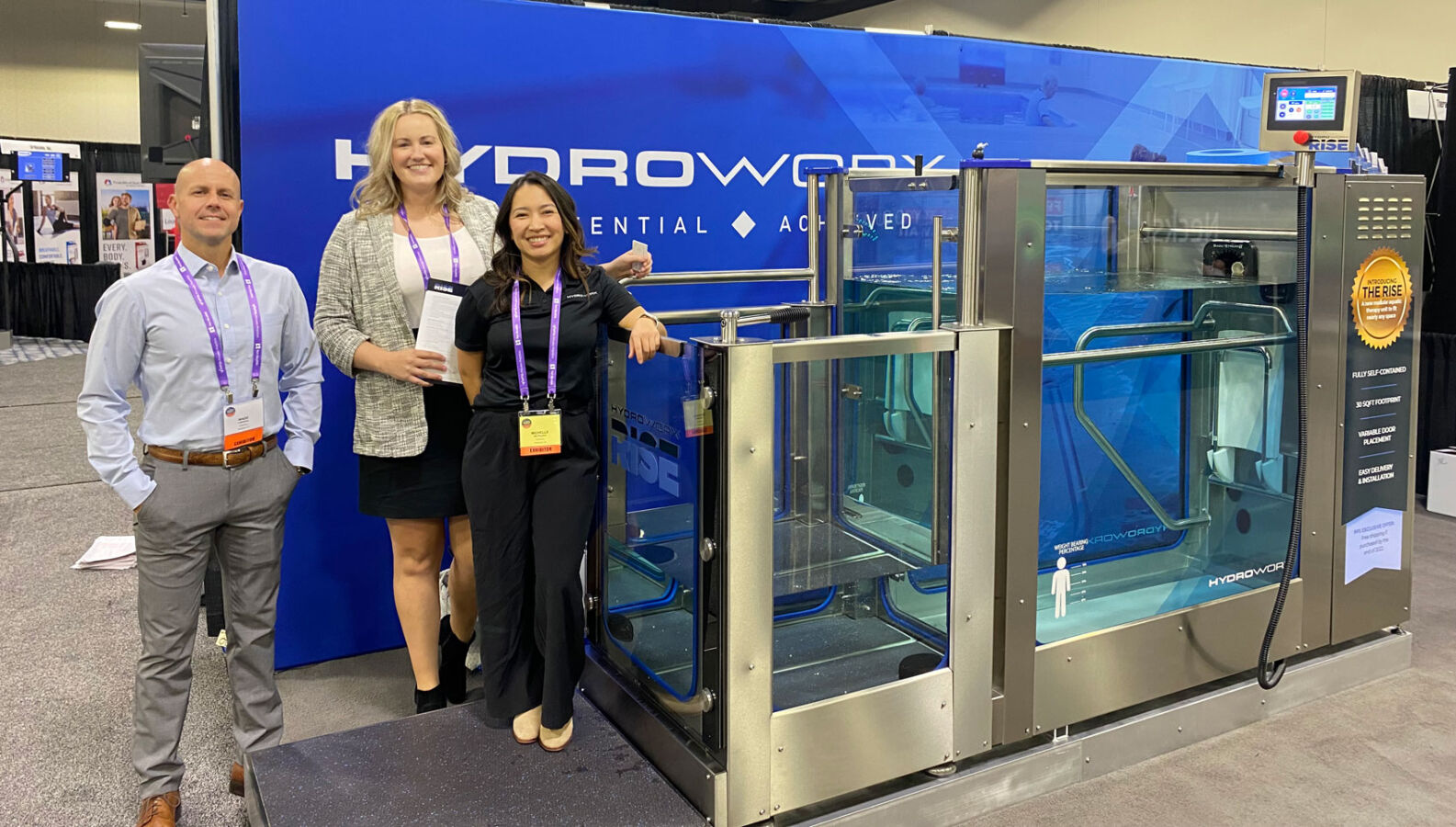

Gallery
Summary
Model
HydroWorx RISE
Footprint
3' x 9'
Speed
0.2-0.6 mph
Water Depth
50"
Controls
7" Touchscreen Interface
- Product Type: Freestanding Underwater Treadmills
- Footprint: 30 sq ft
- Control Access: 7" Touchscreen Interface
- Handrails: Front and side handrails
- Filtration: Commercial-grade system
- Water Depth Range: 50"
- Treadmill Speed: 0.2-6 mph
- Resistance Jet: Adjustable with deep tissue massage hose

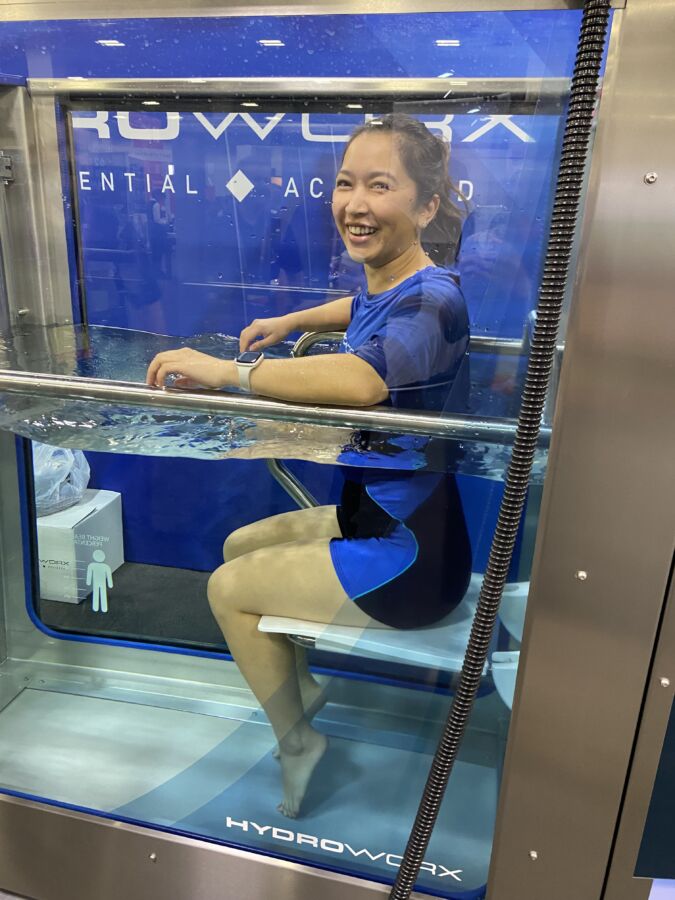

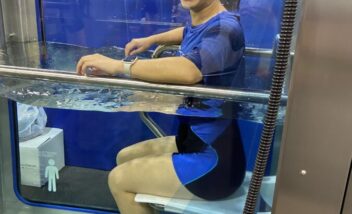

- Fold Down Seat: Included
- Customization Options:
- Door Placement
- Side Platforms
- Ramp
USER & PATIENT CONVENIENCE
- Modular design fits nearly any space
- Flexible door placement for easy access
- Quick 90 second fill and drain time
THERAPY & REHAB TOOLS
- Underwater treadmill (0.2–6 mph)
- Adjustable water depth up to 50″
- Resistance jet with massage hose
- Front and side handrails for support
WATER & SYSTEM MANAGEMENT
- Fully self-contained, no plumbing required
- 7″ touchscreen controls for precise operation
- Temperature range: ambient to 104°F
- Chemical feeder and filtration system
- Side clinician platform(s)
- Wheelchair accessible ramp
- Fold-down seat for comfort and stability
| Dimensions | 34.5" x 106.3" |
| Maximum Load | 300 lbs single user or 550 lbs with a Therapist |
| Max Water Depth | 50" |
| Fill/Empty Time | 1 min 30 seconds each way |
| Temperature Range | From room temperature to 104° F |
| Treadmill Chamber Dimensions | Belt Size - 18" x 44.5" |
| Complete System Weight | Dry: 2,000 lbs / With Water: 5,100 lbs |
| Capacity | 400 gallons |
| Power Requirements | 208/240-volt, 40-amp single phase |
